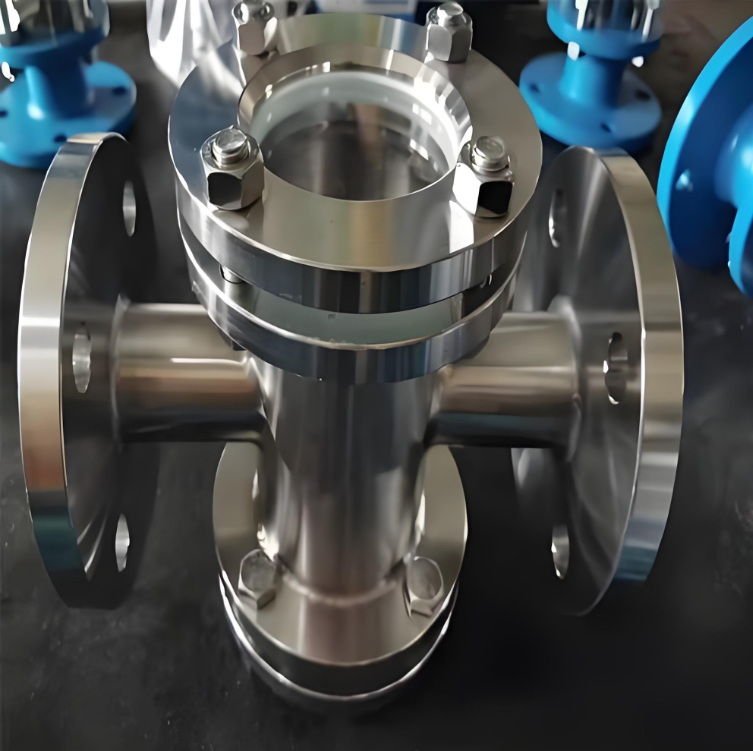

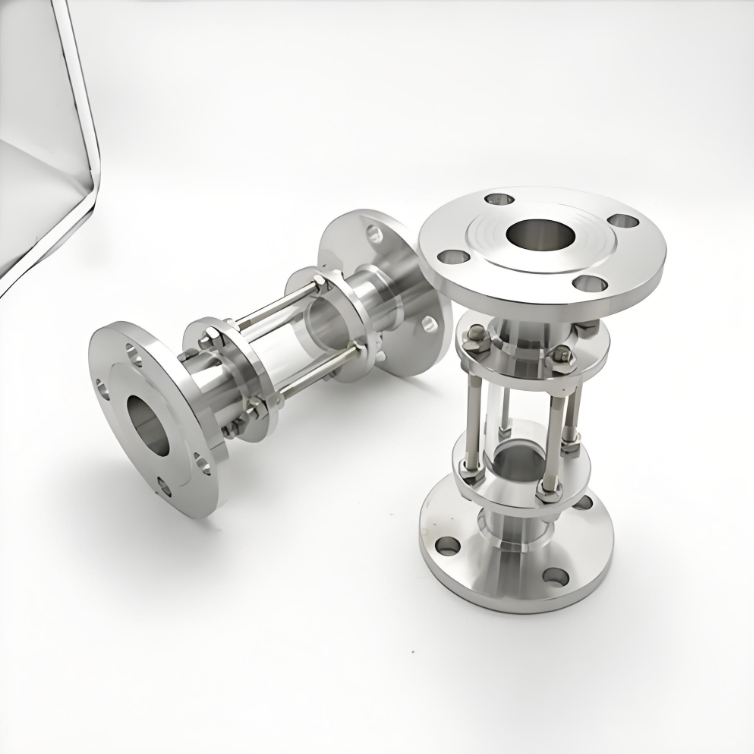

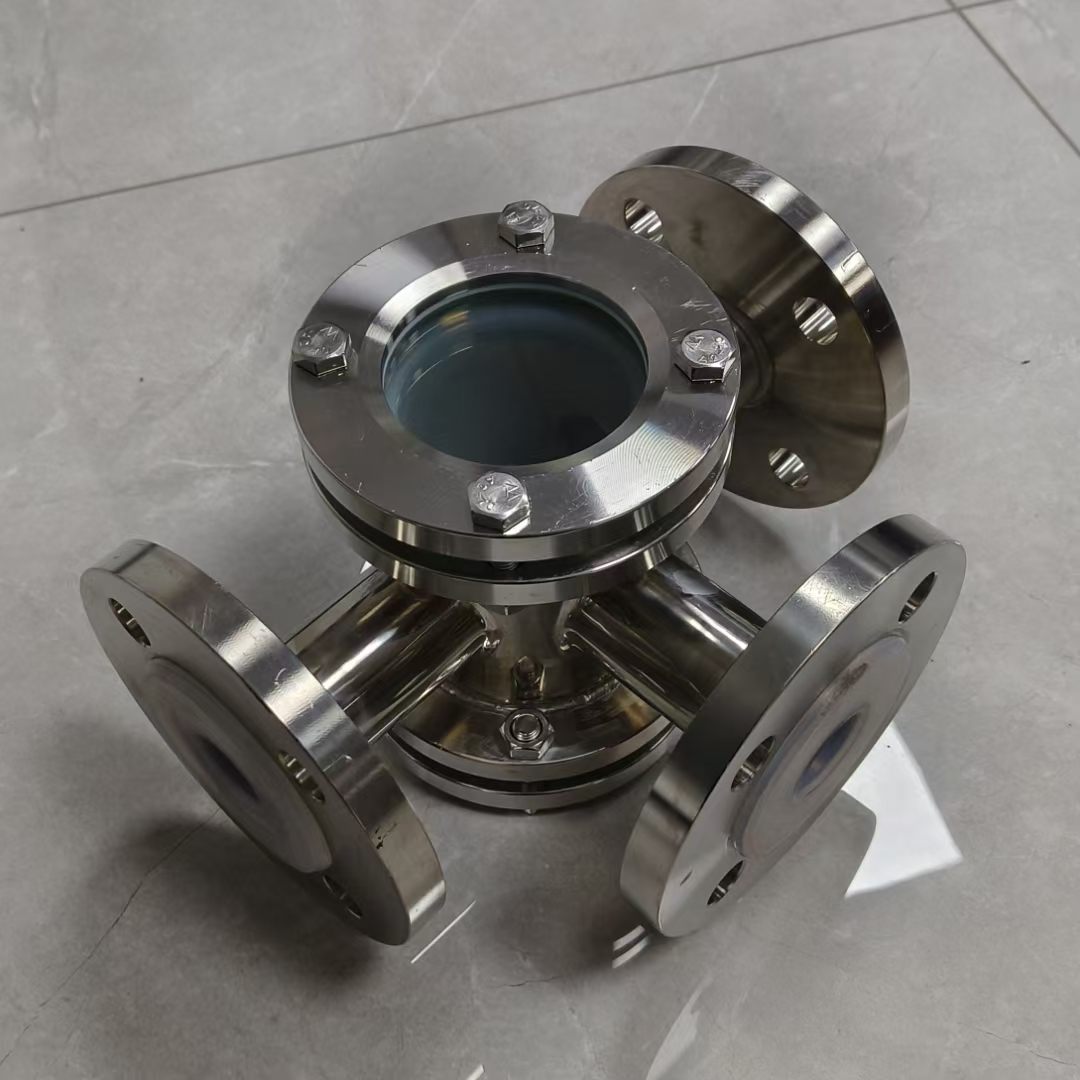

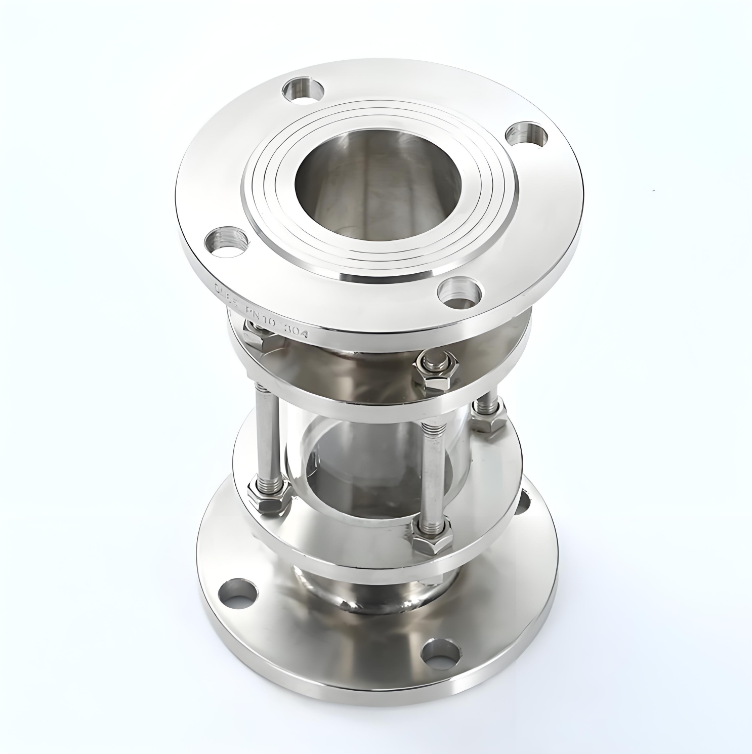

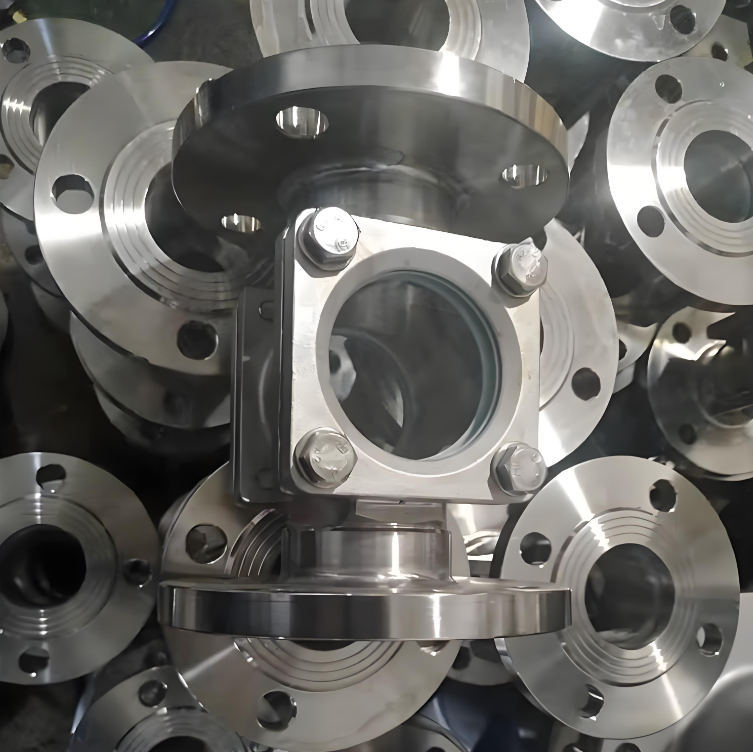

Flange sight flow indicator is a flange component with a transparent observation window, usually installed on the side of pipelines, containers, or equipment, used to observe the flow status, color changes, and other operating conditions of the internal medium. The flange water flow indicator mainly consists of a flange plate, sealing gasket, mirror glass, and fasteners. Mirror glass is generally made of materials that are pressure resistant, temperature resistant, and corrosion-resistant, such as tempered glass, quartz glass, or organic glass, to meet the needs of different working conditions.
Specifications:
1. Flange material: carbon steel, stainless steel, 304, 316, 316L, etc.
3. Window materials: tempered glass, tempered borosilicate glass, quartz glass.
4. Sealing materials: nitrile rubber, silicone, polytetrafluoroethylene, graphite composite.
5. Work pressure (Mpa): PN0.6~2.5.
6. Working temperature: 0 ℃~+250 ℃; 0 ℃~+800 ℃.
