Overview

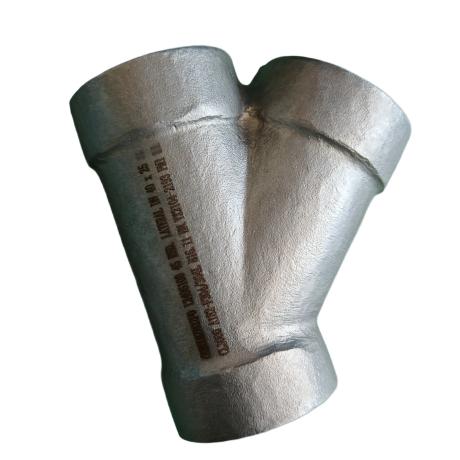

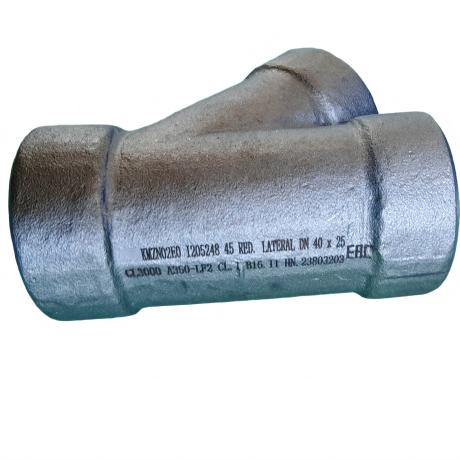

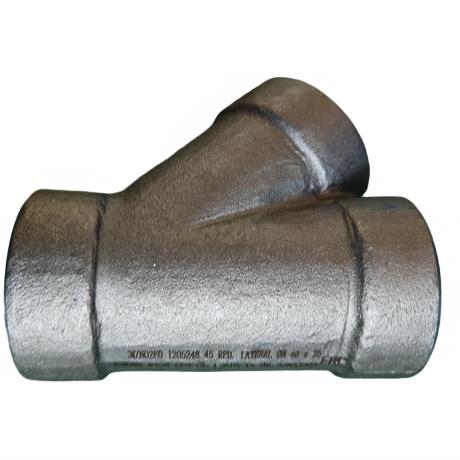

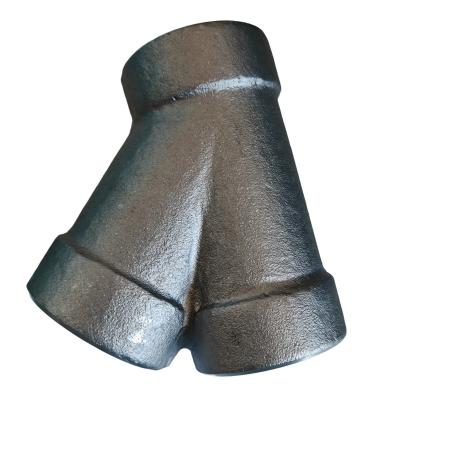

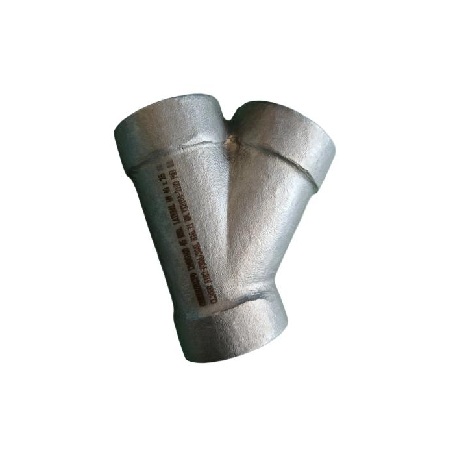

45° Socket Weld Lateral Tee (Y Tee) is a forged socket weld pipe fitting, designed to create a 45° angled branch from the main pipeline. The socket weld connection provides high sealing strength, perfect for high-pressure, small-diameter piping systems.
All our lateral tees are hot forged from A105 carbon steel, strict dimensional inspection to full nominal size without minus tolerance. We follow ASME B16.11 industry standard, supporting custom pressure classes (3000# / 6000# / 9000#) and all standard inch sizes.
Core Advantages
- Hot forged integrated forming, high pressure & impact resistance
- Socket weld connection, stable welding & tight sealing performance
- 45° Y-type design, gentle fluid flow to reduce flow resistance
- Raw material: Carbon Steel A105, stainless steel SS304/SS316 optional
- Full standard size, zero minus tolerance on OD & wall thickness, no thin-wall cutting corners
- Pressure classes: 3000LB, 6000LB, 9000LB for high-pressure service
- Surface options: Black anti-rust paint, sand blasting, oil coating
- Complete NDT & hydrostatic testing before shipment, full MTC certificates provided
Technical Specification
| Item | Technical Parameter |
|---|---|
| Product Name | 45° Socket Weld Lateral Tee / Y Tee |
| Connection Type | Socket Weld (SW) |
| Standard | ASME B16.11, MSS SP-79 |
| Main Material | Carbon Steel A105; SS304 / SS316L for option |
| Pressure Class | 3000#, 6000#, 9000# |
| Size Range | 1/8″ ~ 4″ |
| Wall Thickness | Schedule 80, Schedule 160, XXS, custom thickness |
| Angle | 45 Degree lateral branch |
| Tolerance | Full nominal dimension, zero minus tolerance |
| Inspection | Magnetic particle testing, hydrostatic test, dimensional inspection |
| Surface Finish | Black anti-rust paint / Sandblasting / Anti-rust oil |
Application
Our forged 45° socket weld lateral tees are widely used in high-pressure small-bore pipelines:
- Oil & gas power instrument piping
- Chemical plant high-pressure control pipelines
- Thermal power station auxiliary piping
- Hydraulic & fire protection pipeline systems
- Industrial equipment small-bore pressure piping
- Project piping following ASME & international standards
Why Choose Our 45° Socket Weld Y Tee
- Professional forged pipe fitting factory, competitive factory direct price
- All fittings keep full standard size without negative tolerance
- Regular sizes in stock, fast delivery within 7-15 working days
- Custom special sizes & surface treatment supported
- Complete material test certificate, inspection report for export customs clearance
- Export-standard packaging to prevent rust & damage during ocean shipment
FAQ
Q1: What is the difference between lateral tee and standard straight tee?
A: Straight tee divides flow at 90°, while 45° lateral Y tee branches pipeline at a gentle 45° angle, lowering fluid resistance for smoother medium transportation.
Q2: Do your socket weld lateral tees have minus tolerance on wall thickness?
A: All our forged pipe fittings are strictly manufactured to full standard nominal dimensions, zero minus tolerance on outer diameter and wall thickness, we never cut corners with thin walls.
Q3: What pressure ratings can you offer for this 45° Y tee?
A: Standard pressure classes: 3000LB, 6000LB, 9000LB, fully compliant with ASME B16.11 high-pressure standard.
Q4: Can you supply stainless steel 45° socket weld lateral tee?
A: Yes, we provide SS304 and SS316L stainless steel forged lateral tees upon customer request.
