Socket Weld Equal Tee | Forged Carbon Steel SW Tee

Our socket weld equal tee is one-piece hot forged pipe fitting with three identical socket weld ends, used for equal-diameter pipeline branching. Manufactured strictly to ASME B16.11, all sizes keep full nominal dimension without minus tolerance, widely used for high-pressure instrument, hydraulic and fire control piping.

Overview

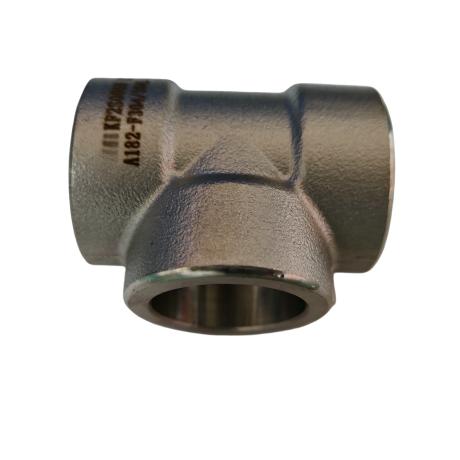

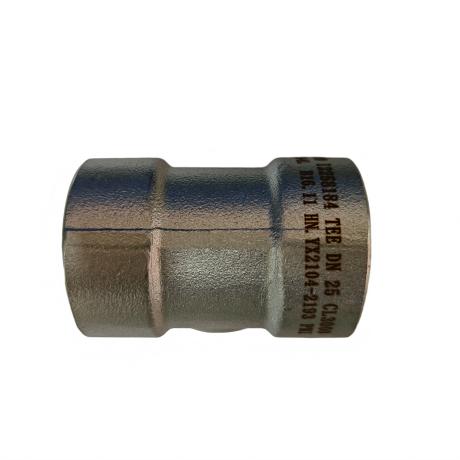

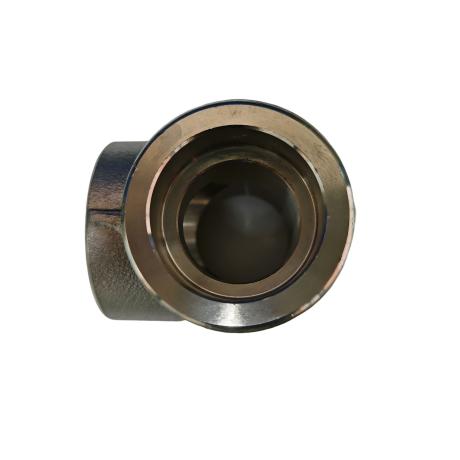

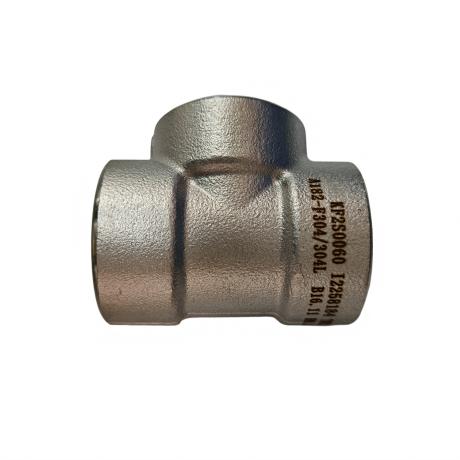

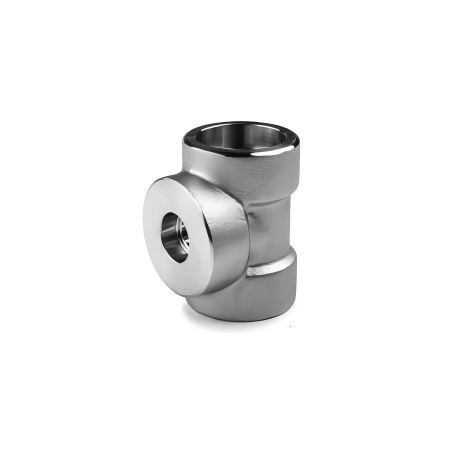

Socket Weld Equal Tee is a forged three-way fitting with same nominal diameter on all three ports, adopting socket weld connection method to split or converge pipeline medium flow.

This fitting is integrally hot forged from carbon steel A105 (stainless steel A182 F304/F316L optional), with thick uniform wall and high compressive resistance. We strictly control all dimensional parameters, guarantee zero minus tolerance on outer diameter and wall thickness, no thin-wall material cutting corners. Available in 3 pressure classes: 3000LB, 6000LB, 9000LB to meet various high-pressure working conditions.

Core Key Features

Integral hot forging molding, high mechanical strength, strong impact & pressure resistance
Three equal-size socket weld ends, convenient welding, reliable sealing performance
Raw material: Carbon Steel A105; Stainless Steel A182 F304/F316L for anti-corrosion demand
Comply with international standard ASME B16.11 & MSS SP-79
Complete size coverage: DN6 ~ DN100 (1/8″ ~ 4″)
Zero minus tolerance on all dimensional parameters, full standard nominal size
Smooth inner bore, reduce fluid resistance, no dead angle for medium flow
Full non-destructive MPI test & hydrostatic pressure test before shipment, complete MTC material certificates supplied

Technical Specification

Item	Technical Parameter
Product Name	Socket Weld Equal Tee
Connection Type	Socket Weld (SW)
Craftsmanship	Hot Forged One-Piece Forming
Execution Standard	ASME B16.11, MSS SP-79
Main Material	Carbon Steel A105; SS A182 F304 / F316L Optional
Pressure Class	3000LB, 6000LB, 9000LB
Size Range	DN6~DN100 / 1/8″ ~ 4″
Wall Schedule	Sch80, Sch160, XXS, Custom wall thickness
Port Type	Equal diameter three-way ports
Dimensional Tolerance	Full standard size, zero minus tolerance
Inspection Items	MPI Magnetic Particle Test, Hydrostatic Test, Full Dimension Inspection
Surface Treatment	Black anti-rust paint / Pickling passivation (SS)

Applications

Our forged socket weld equal tees are widely applied to small-bore high-pressure industrial piping:

Power plant instrument control pipeline
Petrochemical & chemical high-pressure process piping
Hydraulic system pressure pipeline
Fire protection small-bore pressure piping
Offshore marine equipment anti-corrosion pipeline
Food & pharmaceutical stainless steel clean pipeline
Oil & gas auxiliary instrument piping

Why Choose Our Socket Weld Equal Tee

Direct manufacturer supply, stable stock & competitive factory ex-work price
All fittings full standard size with zero minus tolerance, never thin-wall cutting corners
Regular standard sizes in stock, delivery within 7-15 working days
Support customized special size, wall thickness and surface treatment
Complete export certification: Material Test Certificate, NDT MPI report, dimension inspection sheet
Standard export wooden case packaging, effectively avoid scratch, rust & damage during sea transportation

FAQ

Q1: What’s the difference between equal tee and reducing tee?

A: Socket weld equal tee has three ports of the same diameter for equal pipeline branching; reducing tee has one smaller branch port for different-diameter pipeline split.

Q2: Do your socket weld tees have minus tolerance on wall thickness?

A: All our forged pipe fittings are produced strictly per full nominal standard dimensions. We promise zero minus tolerance on outer diameter and wall thickness, no thin material to reduce cost.
